DeviceNet REPEATER/ISOLATOR

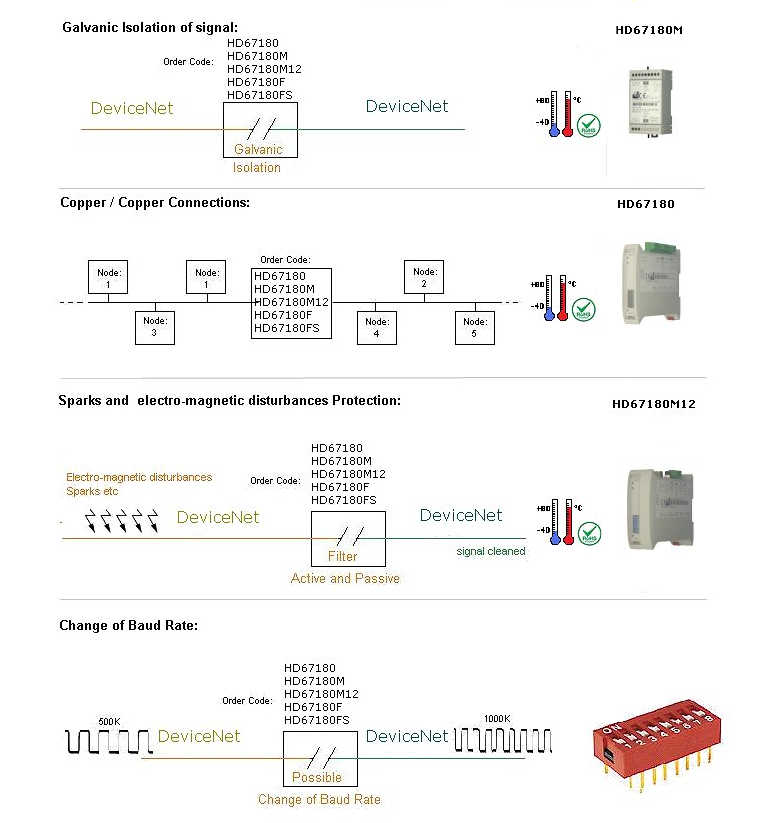

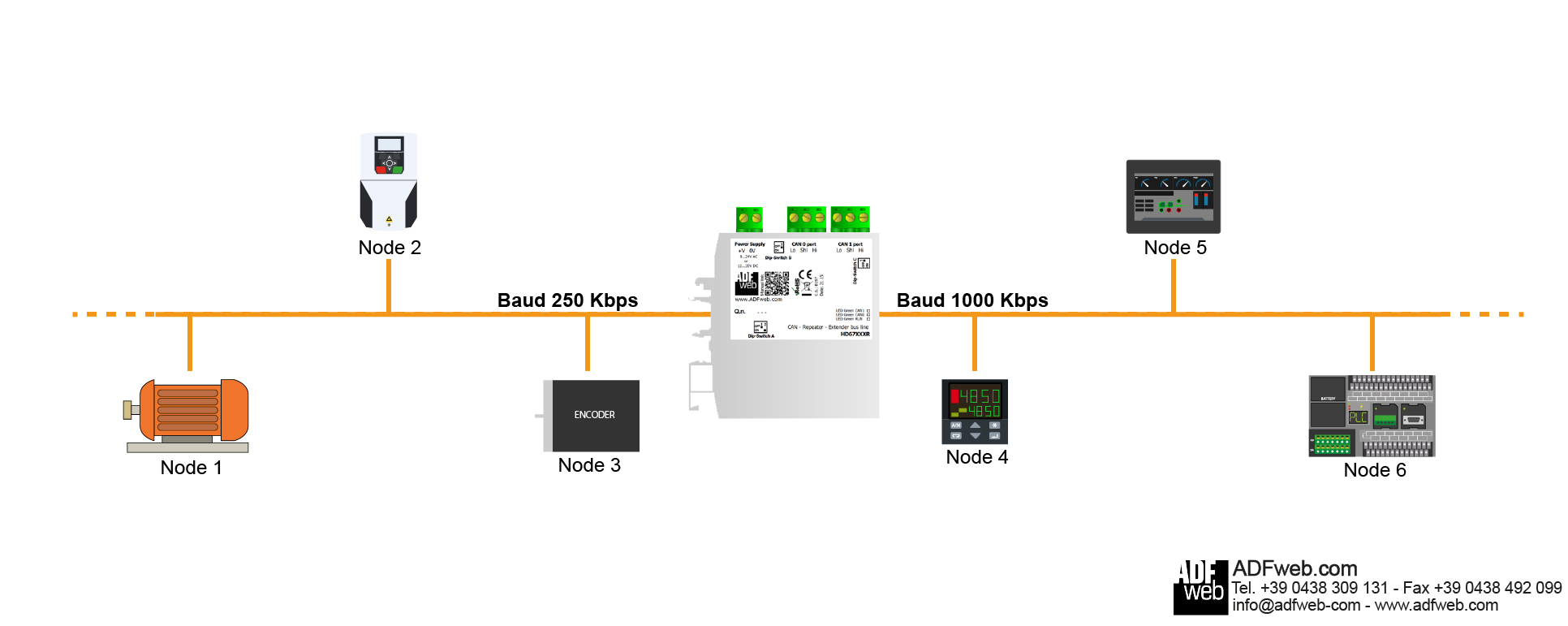

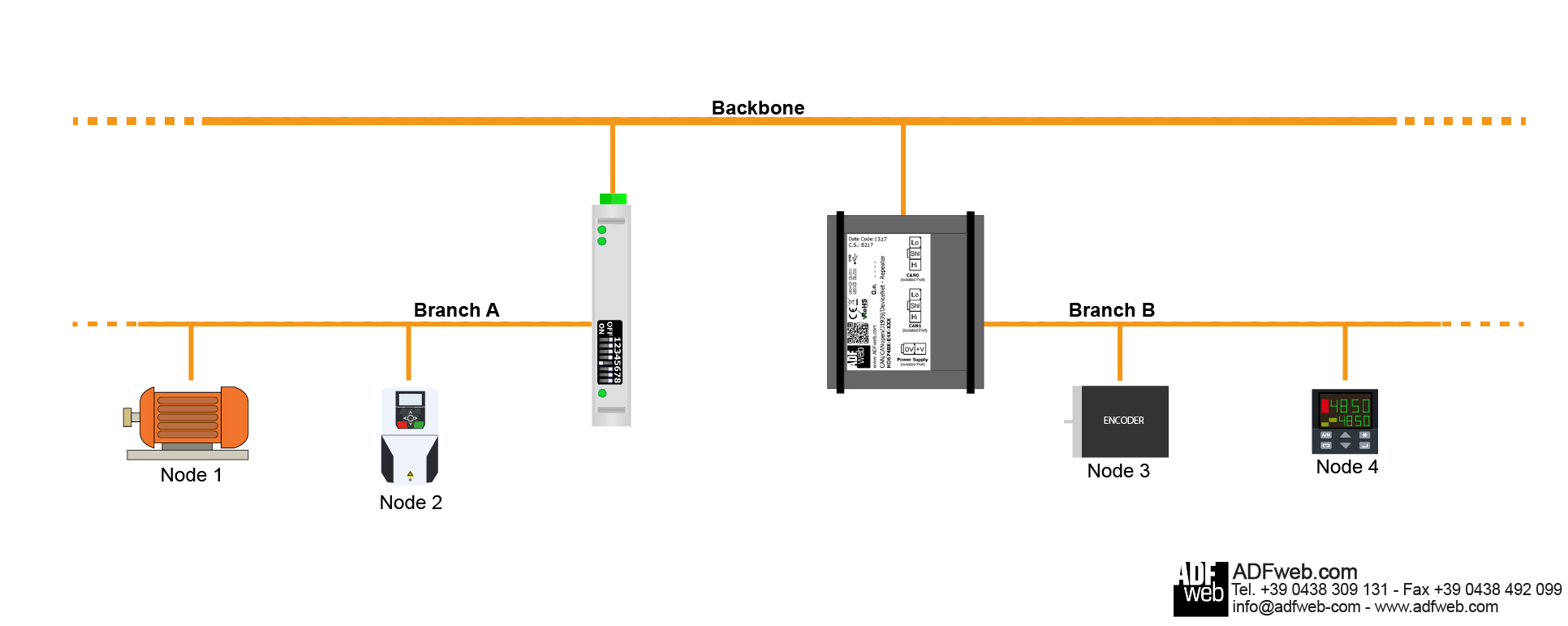

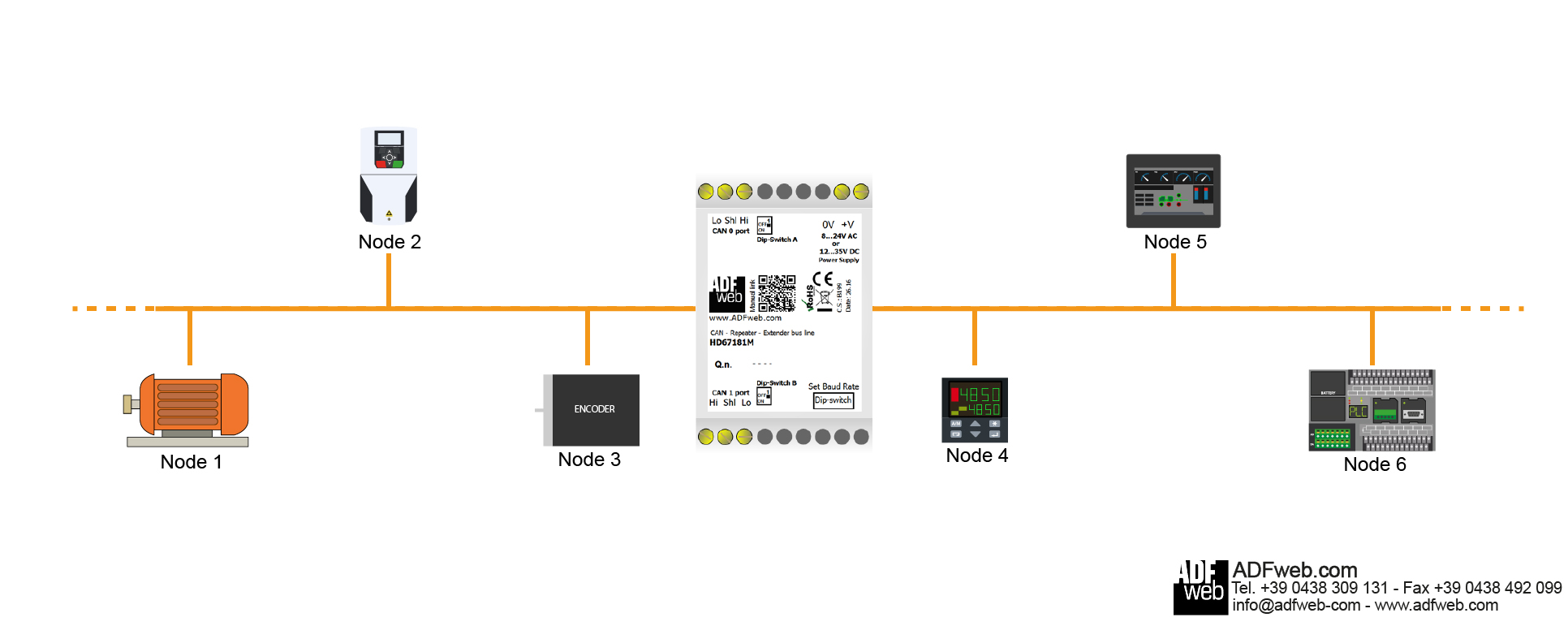

The ranges includes various products for solving all the needs of a DeviceNet line like extension of the line, increase of nodes number, isolation of DeviceNet branches, protection from spikes noise and electrostatic charger or simply to change the communication baudrate.

The HD67180 and HD67180M devices are repeaters/isolators for DeviceNet buses.

The HD67180R, HD67180-A3 and HD67180-A4 devices are repeaters/isolators with a 3kV isolation between the two DeviceNet bus.

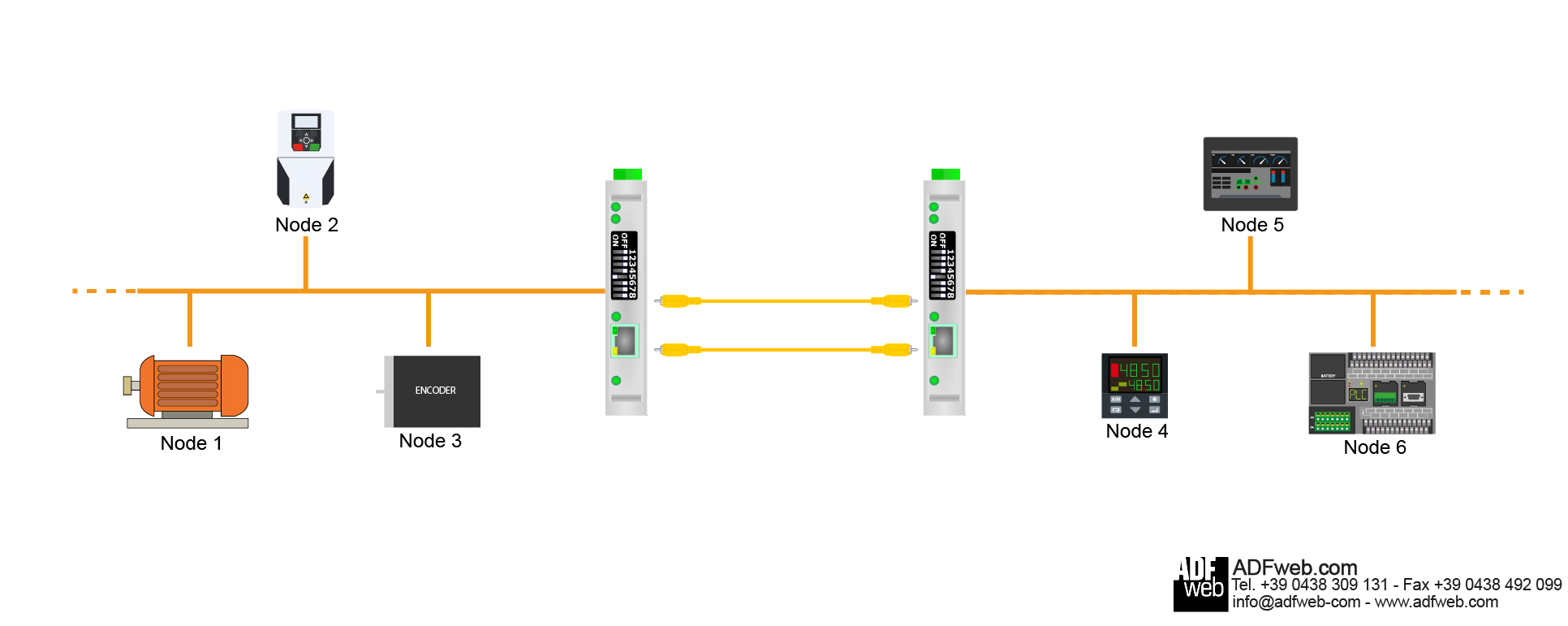

The HD67180F and the HD67180FSX are generic DeviceNet repeaters that allows to extend a DeviceNet network through Multi-Modal optic fiber.


The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67403 – DeviceNet Repeater, STRONG

    • These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between DeviceNet/DeviceNet - DeviceNet/Power Supply - DeviceNet/Power Supply.
    Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
    Two versions, one with Varnished PCB and one with Resined PCB.
    Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
    Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.




    HD67180
    HD67180R

    HD67180M
    HD67180 A4

    HD67180 A3
    HD67403

    Order Code Price Info Details Description User manual Operating Temperature
    Series DeviceNet Repeater
    HD67180 View DeviceNet - Repeater - Extender bus line
    ( Housing type: A, Terminal Blocks Connectors )     		-40° to +85°
    HD67180R View DeviceNet - Repeater - Extender bus line
    ( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67180M View DeviceNet - Repeater - Extender bus line
    ( Housing type: Small Size, Terminal Blocks Connetors )     		-40° to +85°
    HD67180 A3 View DeviceNet - Repeater - Extender bus line
    ( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67180 A4 View DeviceNet - Repeater - Extender bus line
    ( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67403 View DeviceNet - Repeater - Extender bus line
    ( Metal enclosure, Triple Galvanic Isolation: 4KV, PCB Treatment )     		-40° to +105°
    Series DeviceNet Repeater Optic fibres
    HD67180FS View DeviceNet/Optic Fibres - Repeater - Extender bus line
    High Performance    		 -40° to +85°
    HD67180FSX View DeviceNet / Optic Fiber - Repeater - Extender bus line
    ( High Performance )     		-40° to +85°




    Accessories:
    Order Code   Description Details
    AC34011   Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC View
    AC34012   Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC View
    AC34107   Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m View
    AC34114   Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m View
