CAN REPEATER/ISOLATOR

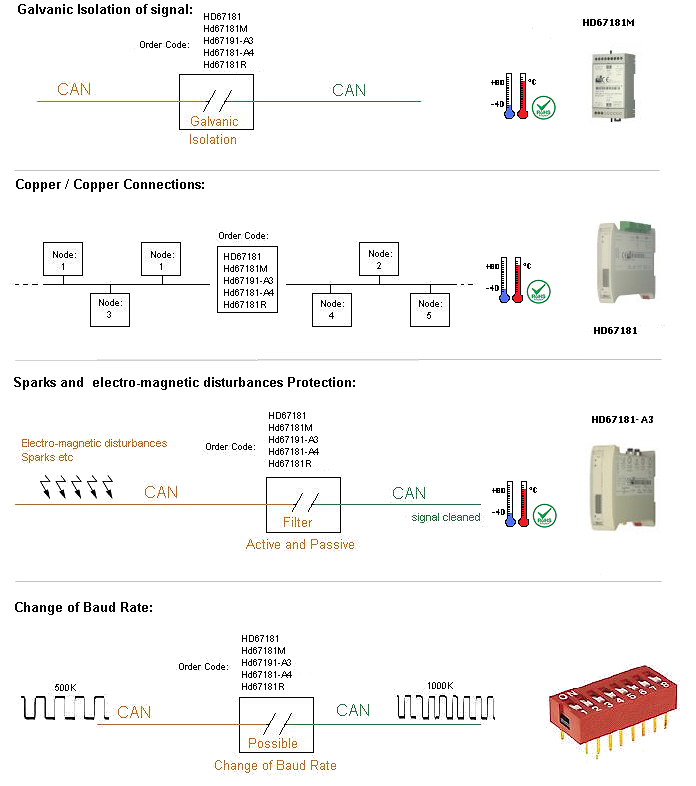

The ranges includes various products for solving all the needs of a CAN line like extension of the line, increase of nodes number, isolation of CAN branches, protection from spikes noise and electrostatic charger or simply to change the communication baudrate.

The HD67181 and HD67181M devices are repeaters/isolators for CAN buses.

The HD67181R, HD67181-A3 and HD67181-A4 devices are repeaters/isolators with a 3kV isolation between the two CAN bus.


The HD67181F and the HD67181FSX are generic CAN repeaters that allows to extend a CAN network through Multi-Modal optic fiber.


The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67401 – CAN Repeater, STRONG

    • These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between CAN/CAN - CAN/Power Supply - CAN/Power Supply.
    Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
    Two versions, one with Varnished PCB and one with Resined PCB.
    Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
    Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.




    HD67181
    HD67181R

    HD67181M
    HD67181 A4

    HD67181 A3
    HD67181FS
    HD67401 E4 HD67401 E7

       See Bridge CAN CAN data filtrate
    Order Code Price Info Details Description User manual Operating Temperature
    Series CAN Repeater for generic use
    HD67181 View CAN - Repeater - Extender bus line
    ( Housing type: A, Terminal Blocks Connectors )     		-40° to +85°
    HD67181R View CAN - Repeater - Extender bus line
    ( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67181M View CAN - Repeater - Extender bus line
    ( Housing type: Small Size, Terminal Blocks Connetors )     		-40° to +85°
    HD67181 A3 View CAN - Repeater - Extender bus line
    ( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67181 A4 View CAN - Repeater - Extender bus line
    ( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )     		-40° to +85°
    HD67401 View CAN - Repeater - Extender bus line
    ( Metal enclosure, Triple Galvanic Isolation: 4KV, PCB Treatment )     		-40° to +105°
    Series CAN Repeater Optic fibres
    HD67181FS View CAN/Optic Fibres - Repeater - Extender bus line
    ( High Performance )     		-40° to +85°
    HD67181FSX View CAN / Optic Fiber - Repeater - Extender bus line
    ( High Performance )    		 -40° to +85°
    Series Optic Fibres CANopen Repeater




    Accessories:
    Order Code   Description Details
    AC34011   Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC View
    AC34012   Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC View
    AC34107   Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m View
    AC34114   Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m View
