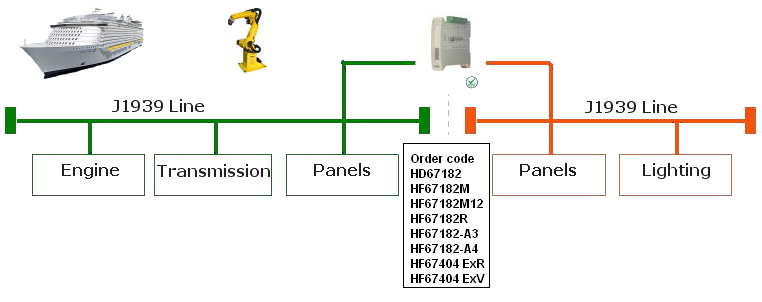

J1939 & NMEA2000 REPEATER/ISOLATOR


HD67182

HD67182M

HD67182R

HD67182-A3

HD67182-A4

HD67182FSX

HD67404
Order Code Price Info Details Description User manual Operating Temperature
Series J1939 Repeater
HD67182 View J1939 and NMEA 2000 - Repeater - Extender bus line
( Housing type: A, Terminal Blocks Connectors )
-40° to +85°
HD67182M View J1939 and NMEA 2000 - Repeater - Extender bus line
( Housing type: Small Size, Terminal Blocks Connetors )
-40° to +85°
HD67182R View J1939 and NMEA 2000 - Repeater - Extender bus line
( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV )
-40° to +85°
HD67182-A3 View J1939 and NMEA 2000 - Repeater - Extender bus line
( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV )
-40° to +85°
HD67182-A4 View J1939 and NMEA 2000 - Repeater - Extender bus line
( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )
-40° to +85°
HD67404 View J1939 and NMEA 2000 - Repeater - Extender bus line
( Metal enclosure, Triple Galvanic Isolation: 4KV, PCB Treatment )
-40° to +105°

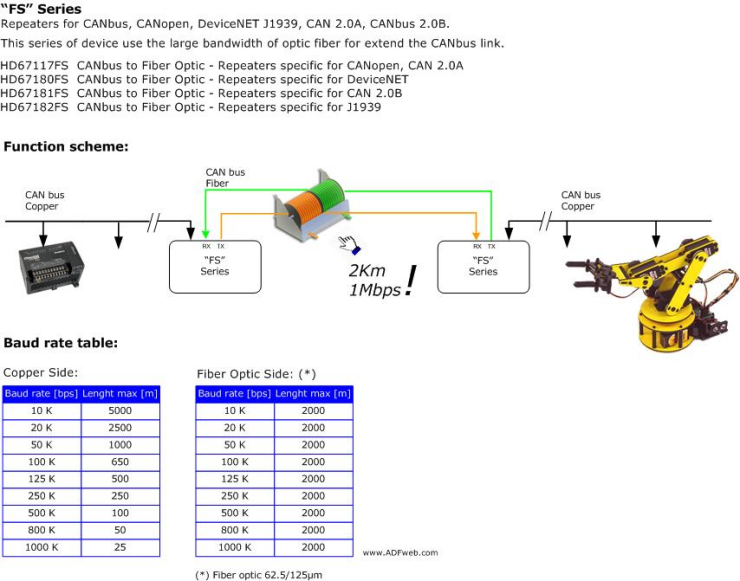

Series J1939 Repeater Optic fibres
HD67182F View J1939 and NMEA 2000/Optic Fibres - Repeater - Extender bus line -40° to +85°
HD67182FS View J1939 and NMEA 2000/Optic Fibres - Repeater - Extender bus line
( High Performance )
-40° to +85°
HD67182FSX View J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line
( High Performance )
-40° to +85°






>
Accessories:
Order Code   Description Details
AC34011   Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC View
AC34012   Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC View
AC34107   Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m View
AC34114   Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m View

Benefits:
Software for easy configurator
Designed for serius use
Very easy to configure
Low cost
Rail din mountable
Galvanic isolation
Industrial temperature range:
  -30° / 70° (-22°F / 158°F)
